Unusual Architecture + [Opera House]

Montréal, Québec, Canada: [MAISON SYMPHONIQUE DE MONTRÉAL BY DIAMOND SCHMITT ARCHITECTS]
Diamond Schmitt Architects

The concert hall is designed primarily for unamplified music performance. This includes the entire spectrum of a symphony orchestra and also chamber music, thanks to the adjustable systems of the hall.

Diamond Schmitt Architects

These allow to tailor the stage size to the number of artists performing, and to adjust the acoustical environment with motorized reflectors and sound absorbing cloth.

Diamond Schmitt Architects

La Maison is a dynamic expression of how architecture shapes music. Clear sightlines, audience comfort and superb acoustics define the concert-going experience in the new home of the acclaimed Montréal Symphony Orchestra under maestro Kent Nagano.

Diamond Schmitt Architects

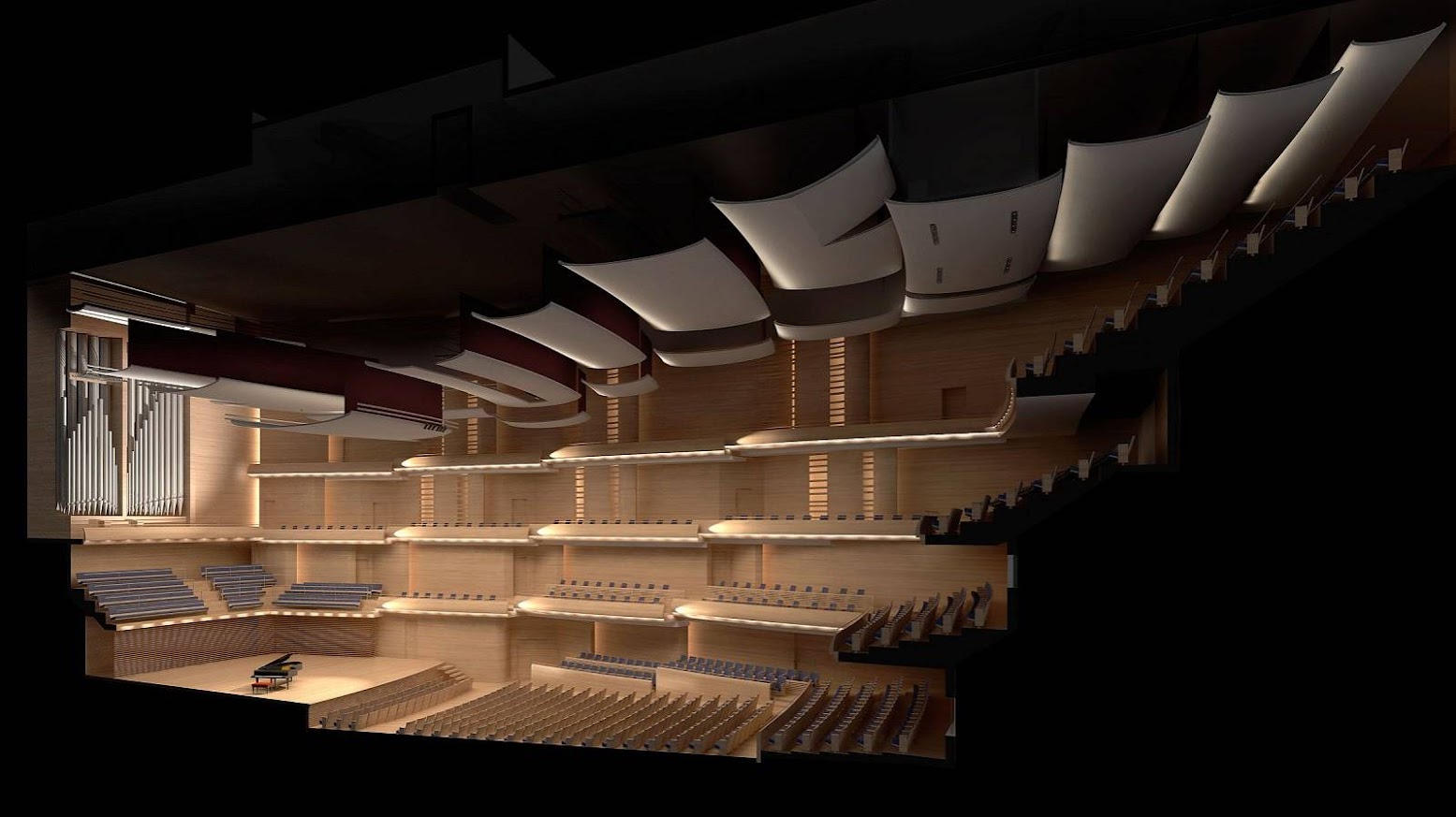

The hall is of “shoebox” design, distinguished among other elements by its relatively narrow, high and long straight geometry with audience seating on multiple balcony levels and surrounding the performers.

Diamond Schmitt Architects

These geometric features have proven to deliver a superior acoustic environment and create an intimate relationship between performers and audience. The auditorium meets noise criteria N1, in which the background noise level in the hall is not audible to the human ear.

Diamond Schmitt Architects

This is achieved in part by creating a "box within a box‟where the hall is structurally separated from everything surrounding it and sits on rubber and steel pads that prevent the transmission of vibration from the outside. The Symphony hall is designed to be an integral part of Place des Arts – the cultural heart of Montréal.

Diamond Schmitt Architects

It is accessible from the street, from the plaza, as well as the subway, and beckons with an extensive glazed curtainwall, double-height reception room and side lobbies that convey a strong visual sense of the activity within, thereby enlivening the public life of the city.

Diamond Schmitt Architects

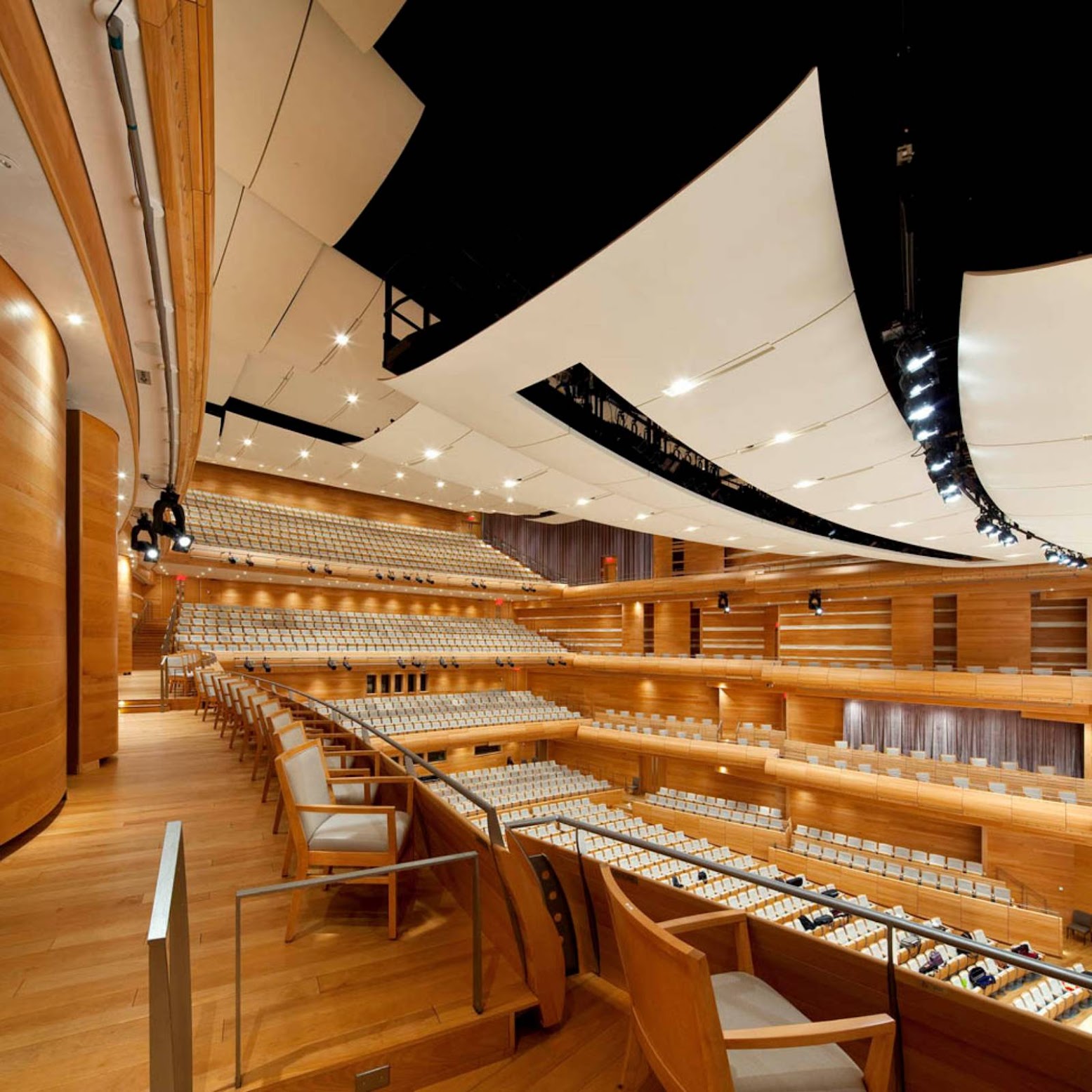

A sculpted roofline soars above the limestone and granite base, extending the form of the wood-lined auditorium. Curved walls and balconies provide the acoustic dimensions of the hall and reinterpret the classic shoebox concert hall design with the exacting curves and proportions of a very large musical instrument.

Diamond Schmitt Architects

The architects, in collaboration with the 19th-century Quebec organ manufacturer Cassavant Fréres,, who collaborated with architects Diamond-Schmitt and Ædifica, designed the striking array of organ pipes that grace the wall behind the stage.

Diamond Schmitt Architects

The hall is a LEED certified building (Leadership in Energy and Environmental Design), promoting sustainable choices in the quality of environments and environmental site management.

Diamond Schmitt Architects
Diamond Schmitt Architects
Diamond Schmitt Architects
Diamond Schmitt Architects
Diamond Schmitt Architects

Location: Montréal, Canada Architect: Diamond SchmittArchitects Project Team: A.J. Diamond, Gary McCluskie, Matthew Lella, Michael Treacy, Earle Briggs, Eric Lucassen, Jessie Waese, Cynthia Carbonneau, Marcin Ludwik Sztaba, Gary Watson Acoustic Consultants: Artec Renderings: Cicada Design Joint Venture: Ædifica Year: 2011 Client: Québec Government Photography: Tom Arban, James Brittain
